HBA/RAID cards & Noctua fan(s) are NOT included, only the shroud + screws are for sale!
If you want the shroud with fans included, please see my store page!
Please check my store for specific designs before buying the universal!
I CAN grantee fitment for counterfeit cards with this design!
Fitment:

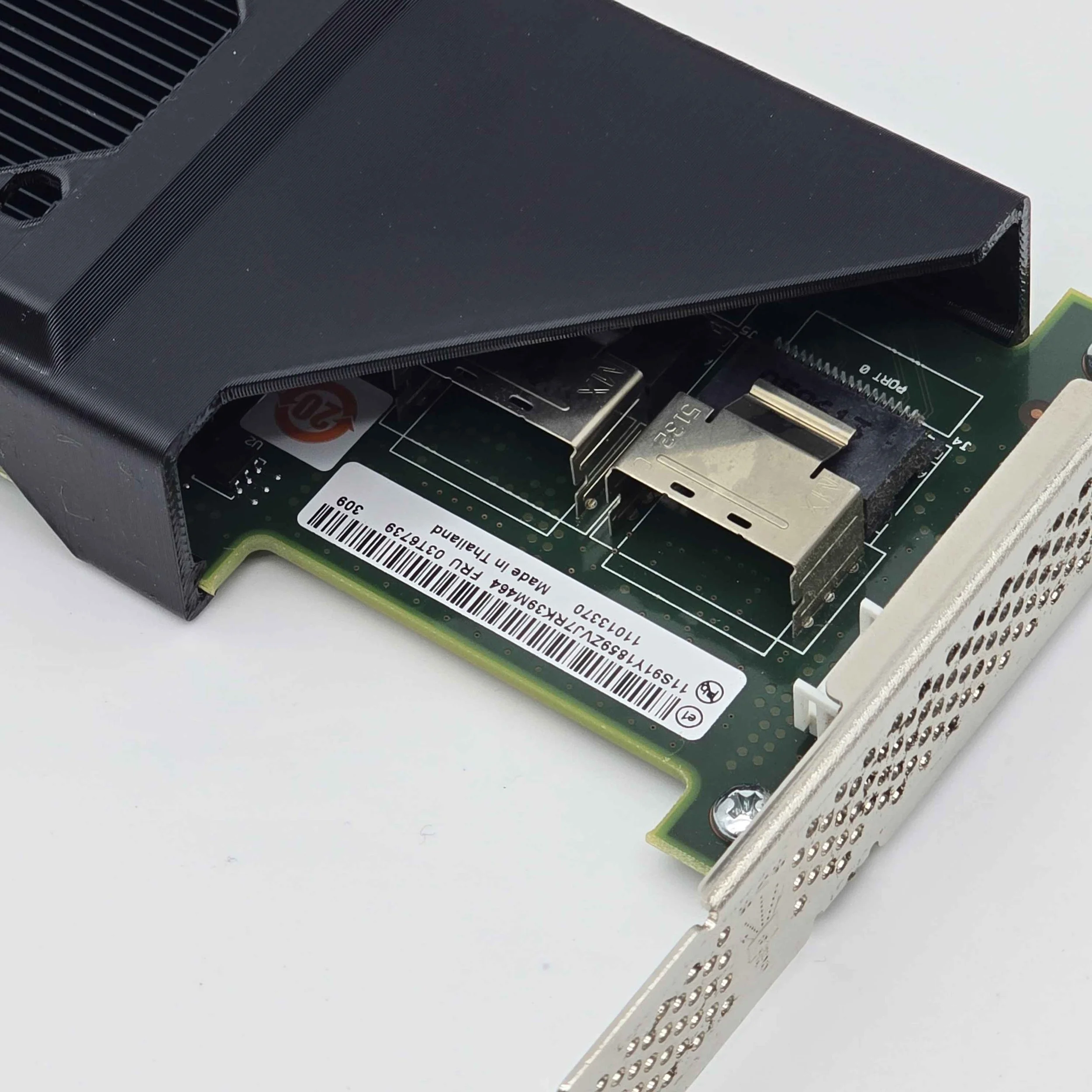

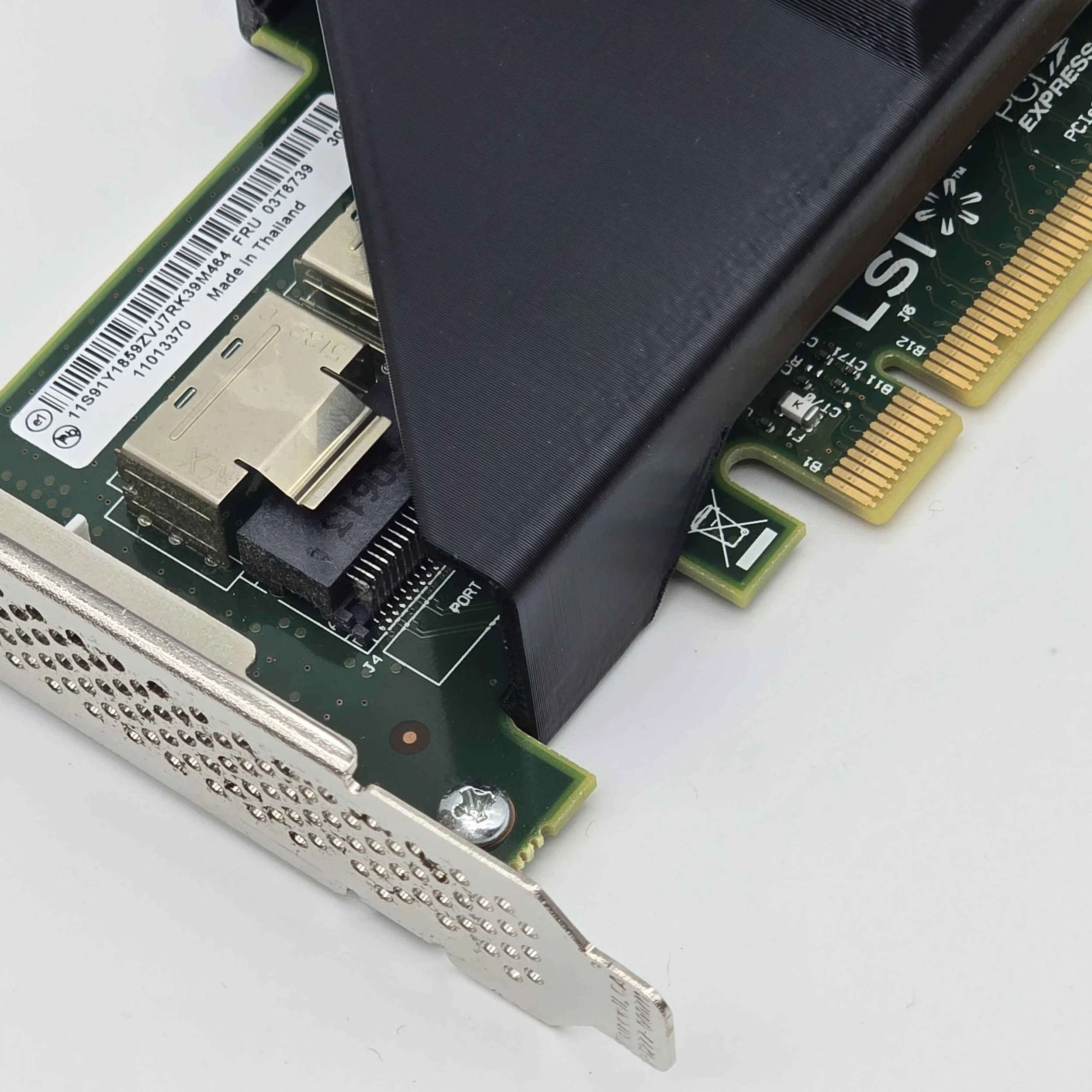

Designed to fit cards with connectors at the rear of the card as seen in the images.

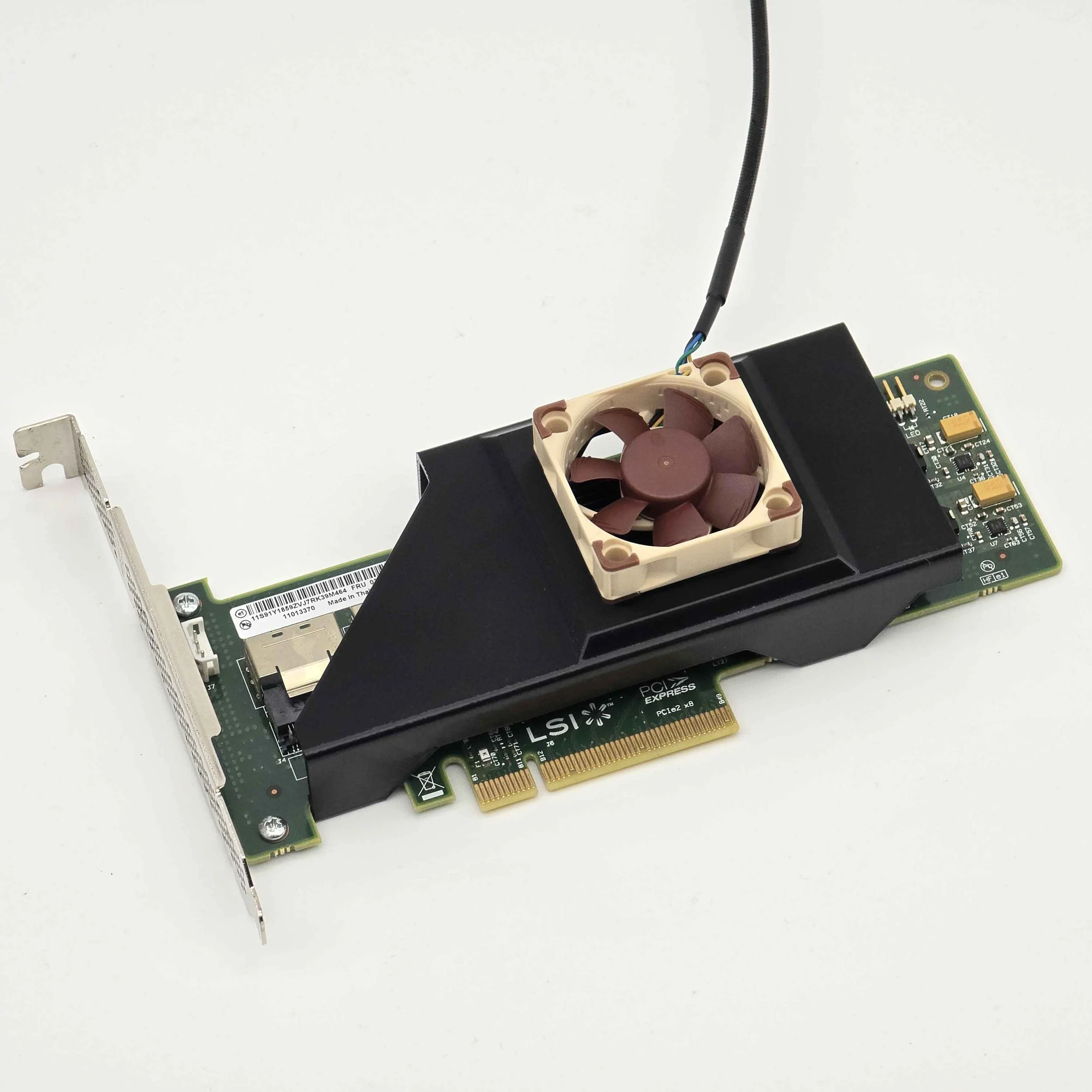

Compatible with 40mm fans, guaranteed fitment with Noctua NF-A4x10.
Fits cards that are 56.15 mm wide (1 mm of variance), 1 slot thick and have a x8 PCIe connector or smaller (physically).
Most low profile cards meet these dimensions.
If you are not sure, send me a message and I can help confirm fitment prior to purchasing.
Details:
3D printed with polycarbonate (PC) plastic to withstand high heat environments without deforming.

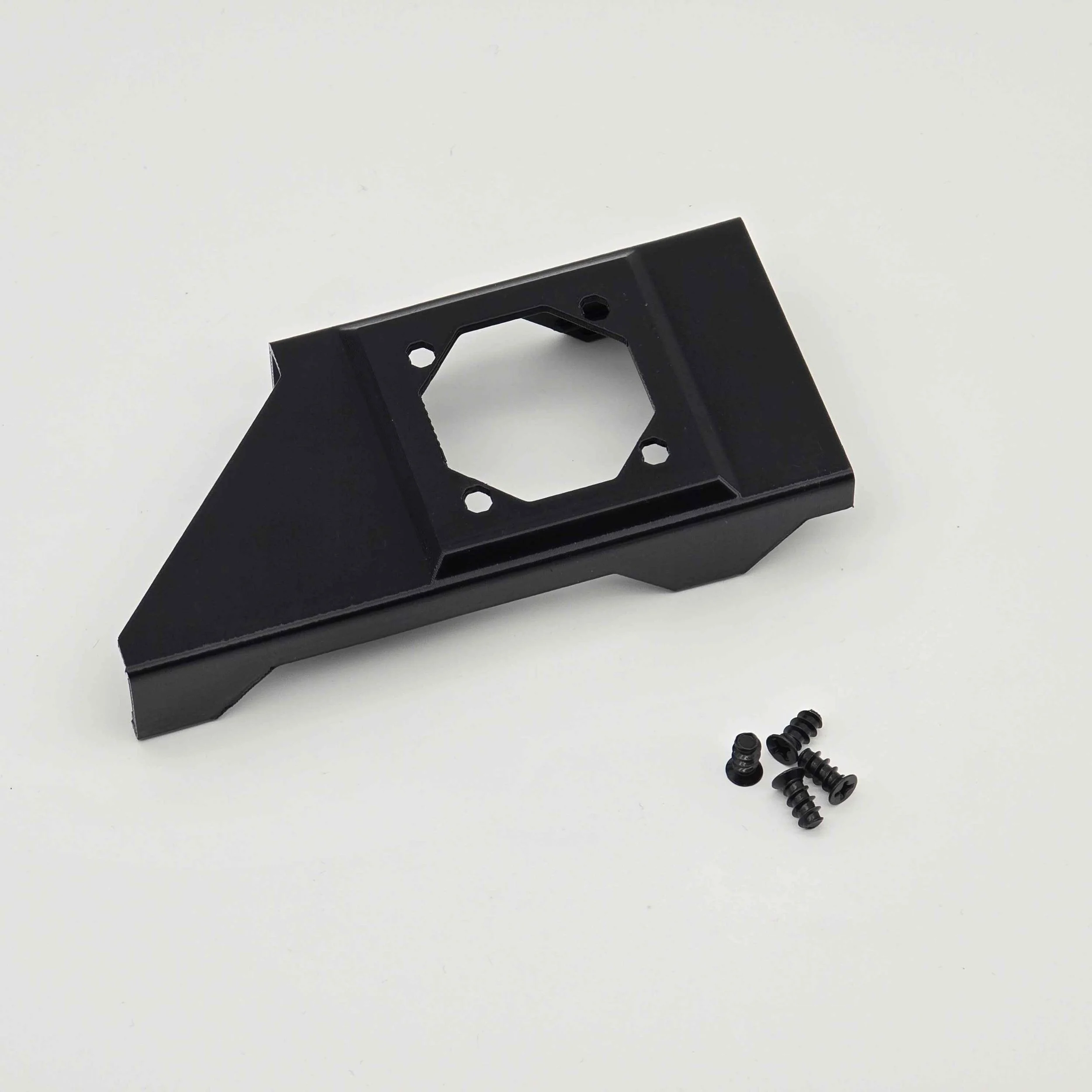

4 standard PC case fan screws included (M5 x 10 mm).
1.75 slots are used (card + shroud + 10 mm fan).
Shroud fan screw rails are spaced 32 mm apart from the center of each rail.
Shroud fits snugly onto the cards PCB, some force is required to attach (see instructions below & video).
Instructions:

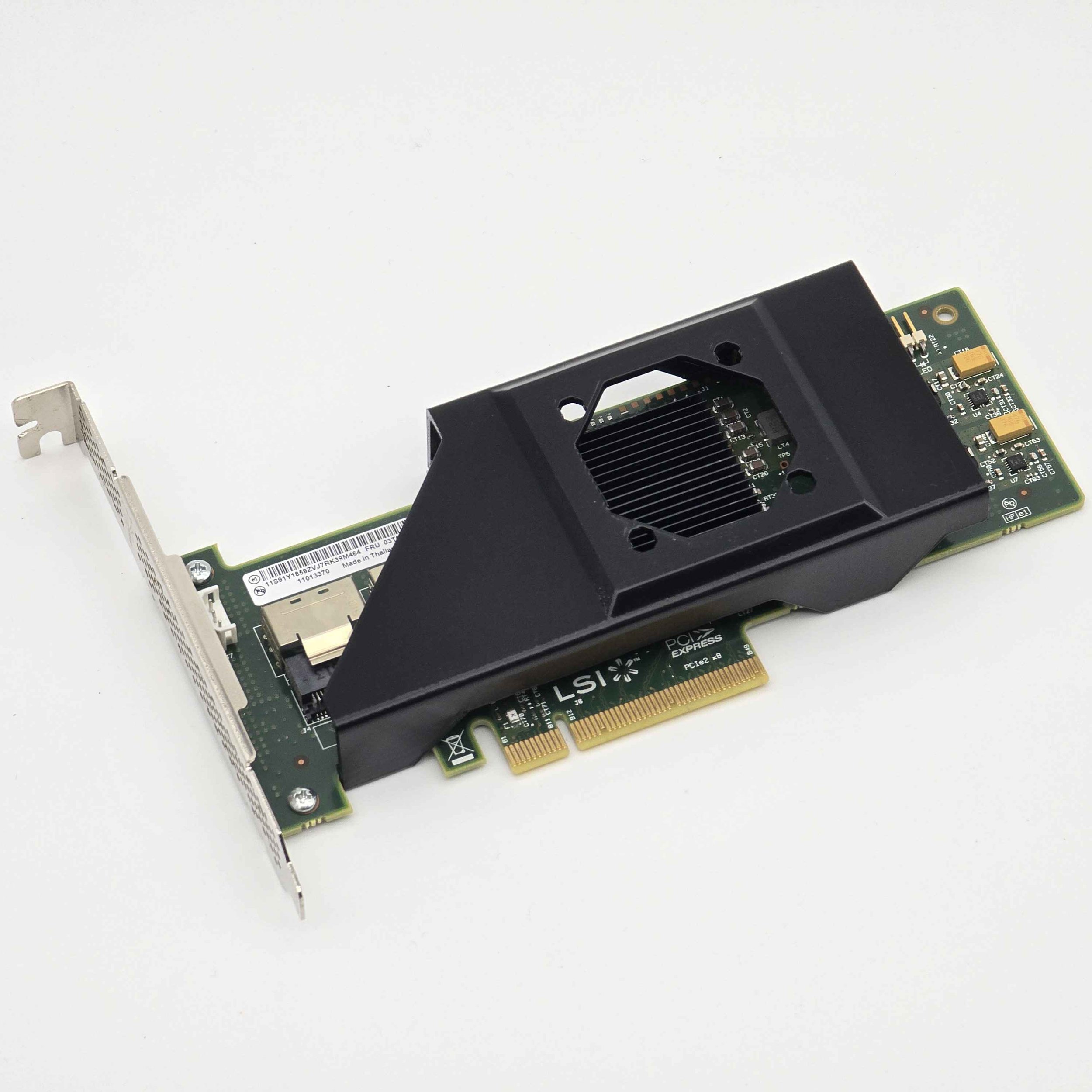

Place shroud over heatsink.
Clip on the 2 clips on the side with the PCIe slot first.
Apply lateral pressure at the top of the shroud, pushing the shroud towards the other side.
The remaining 2 clips will make an audible click when they engage over the PCB.
About:
Designed and manufactured in the USA.
Free shipping (USPS 3-5 business days)
2 day processing time
60 day returns
