HBA/RAID cards are NOT included, only the fan + shroud are for sale!
Please see my store for the Noctua 40 mm fan mount variant!
Please check my store for specific designs before buying the universal!
I CAN grantee fitment for counterfeit cards with this design!
Fitment:

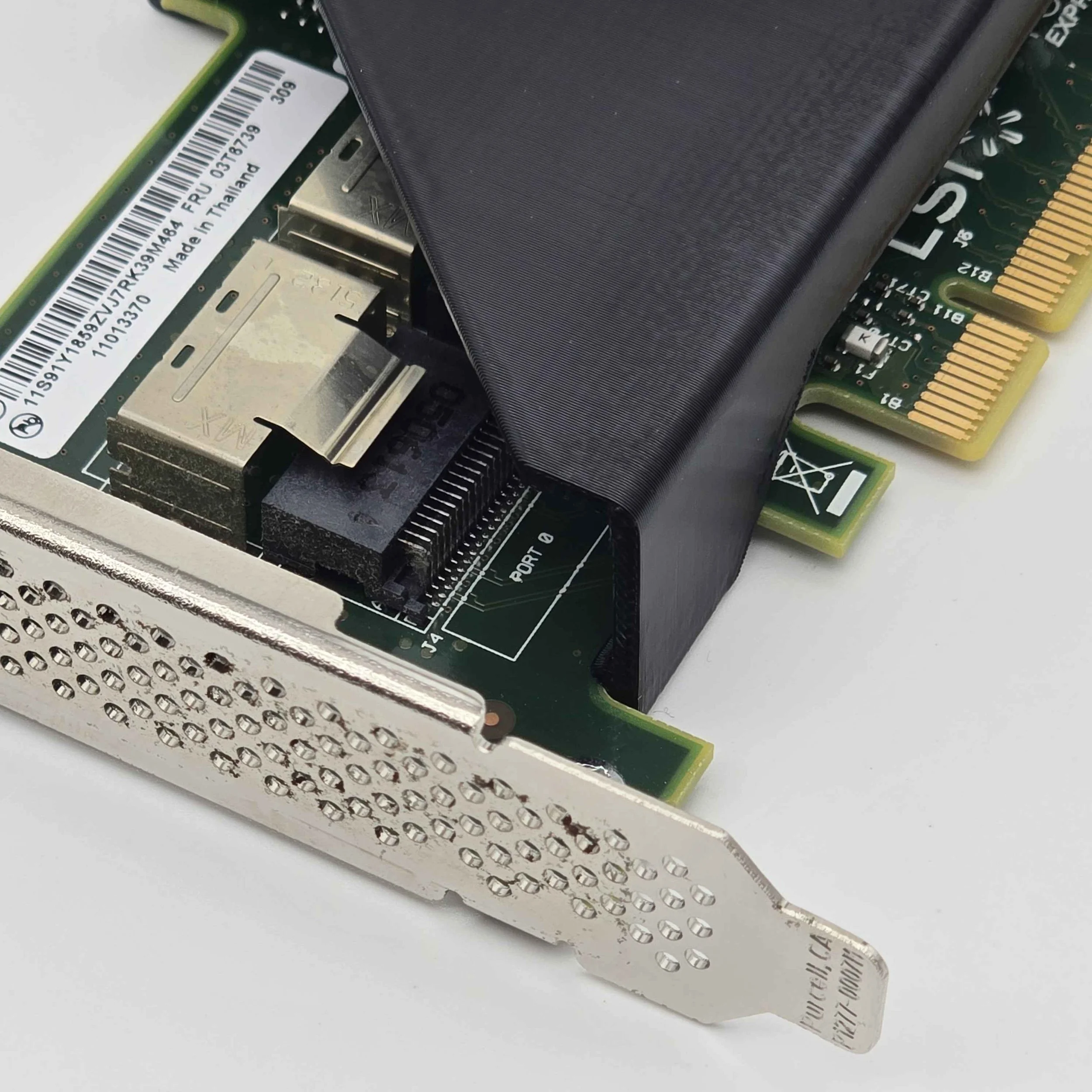

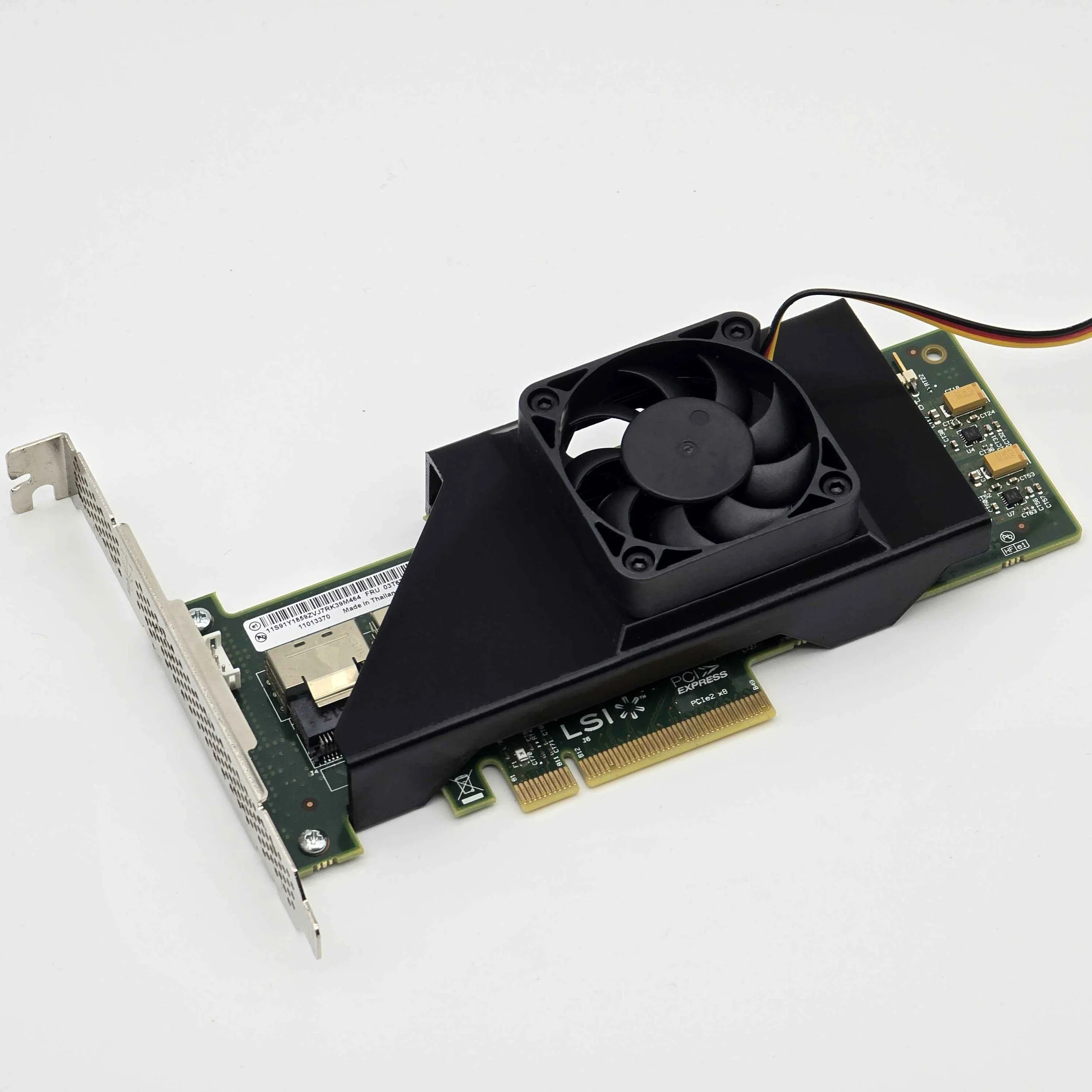

Designed to fit cards with connectors at the rear of the card as seen in the images.
Fits cards that are 56.15 mm wide (1 mm of variance), 1 slot thick and have a x8 PCIe connector or smaller (physically).
Most low profile cards meet these dimensions.
If you are not sure, send me a message and I can help confirm fitment prior to purchasing.
Details:
3D printed with polycarbonate (PC) plastic to withstand high heat environments without deforming.
1.75 slots are used (card + shroud + fan).

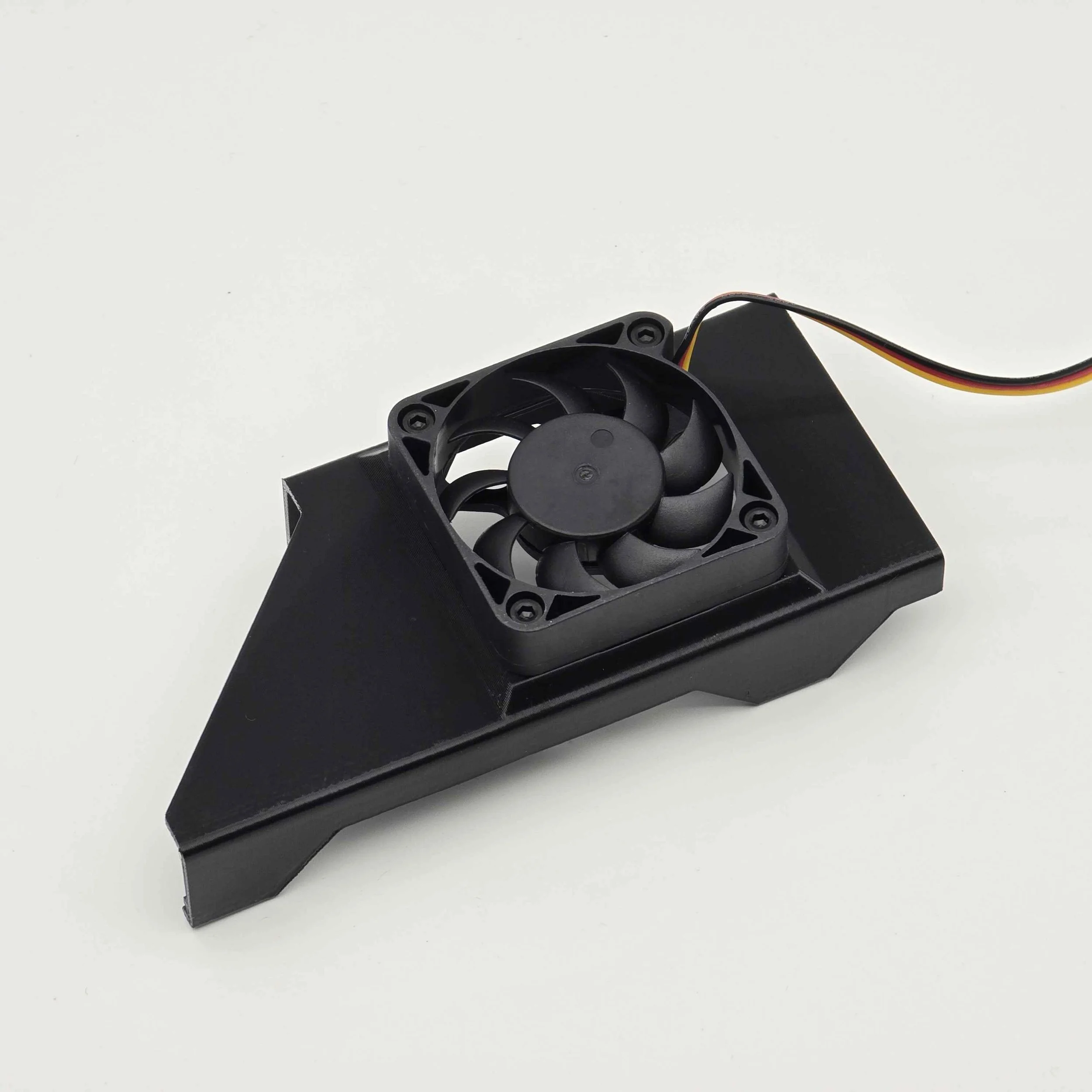

50 mm fan included with silent oil lubricated sleeve bearing.
Shroud fan screw rails are spaced 40 mm apart from the center of each rail.
Fan is bolted onto the shroud using 4 M4 x 10 mm philips self tapping screws left slightly loose for adjustment.

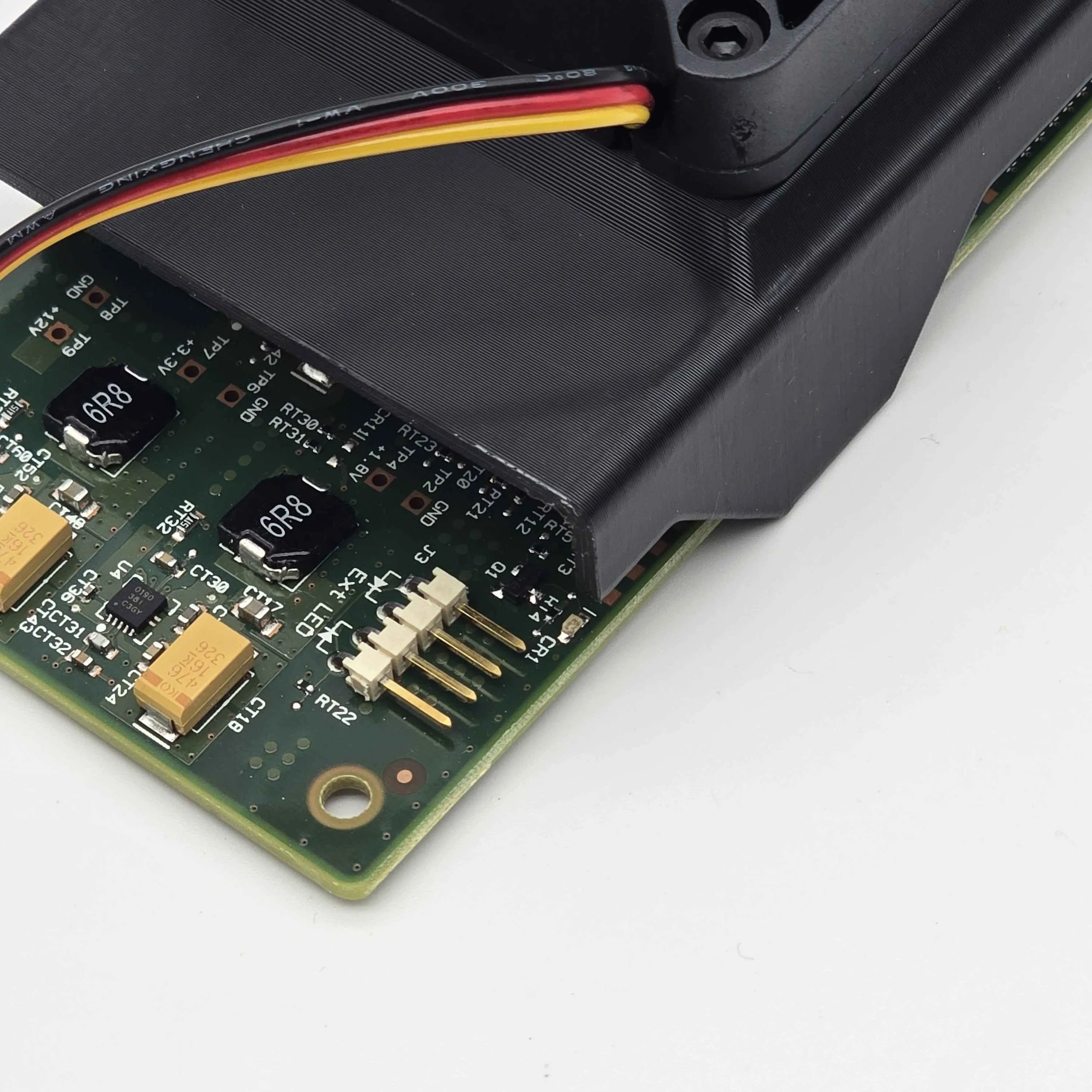

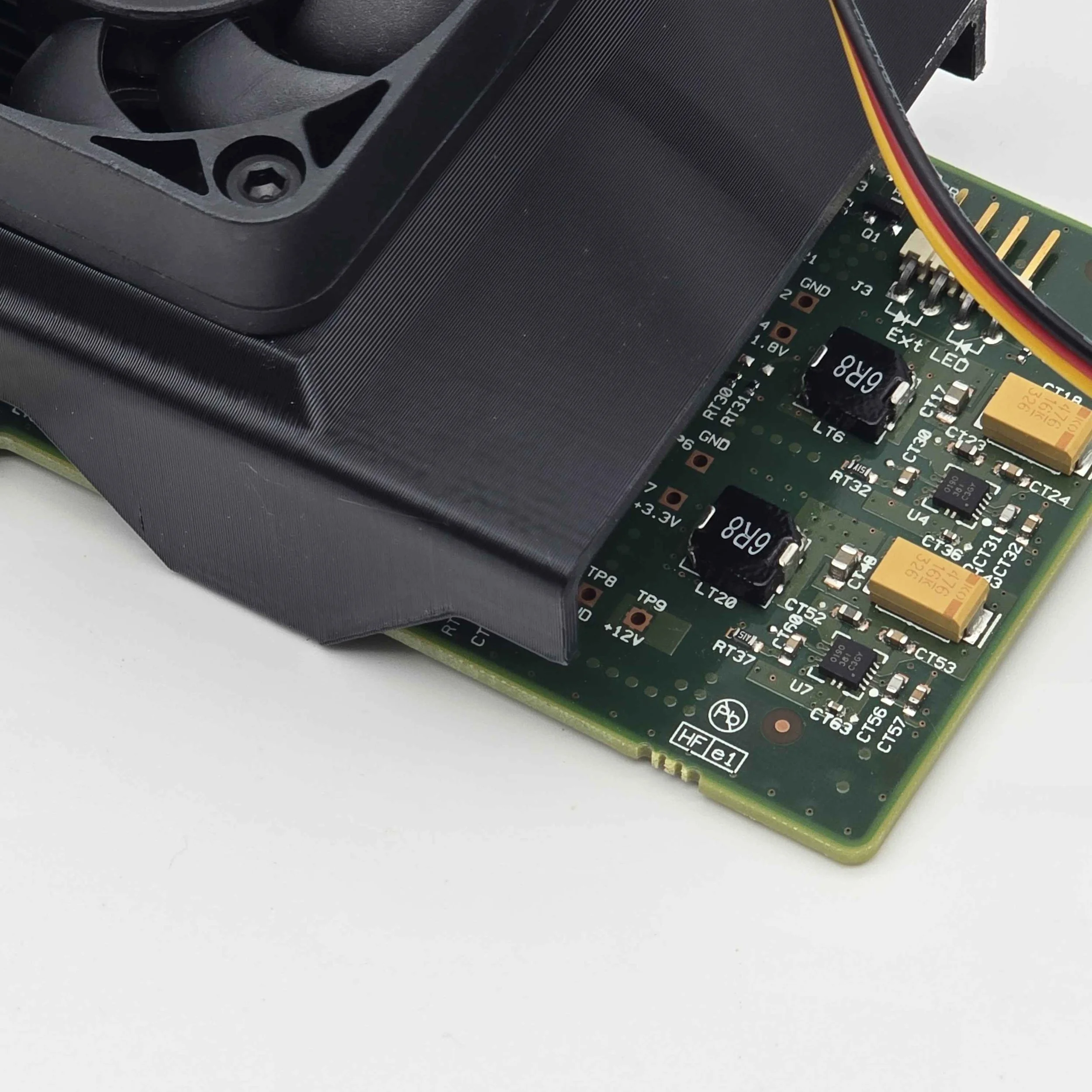

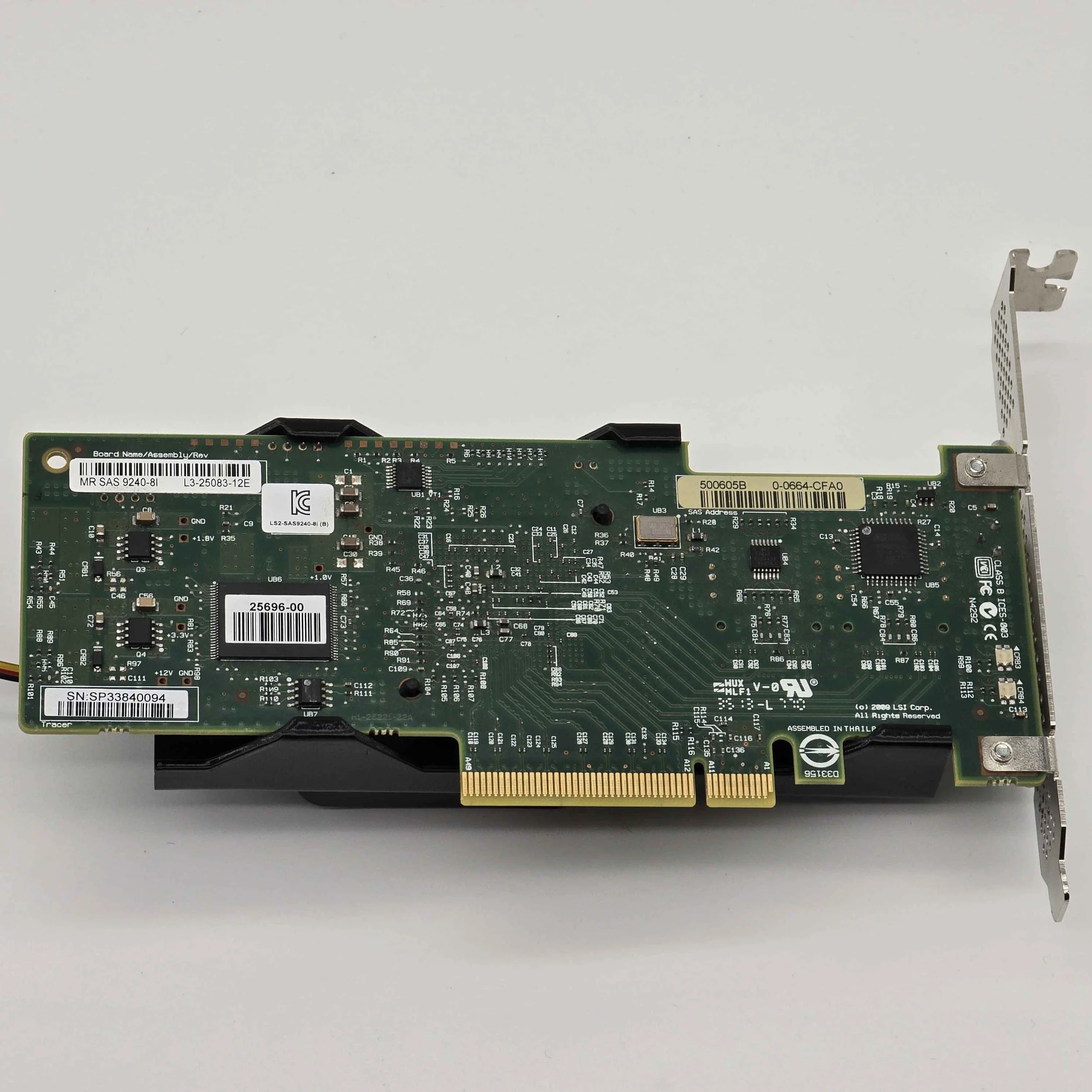

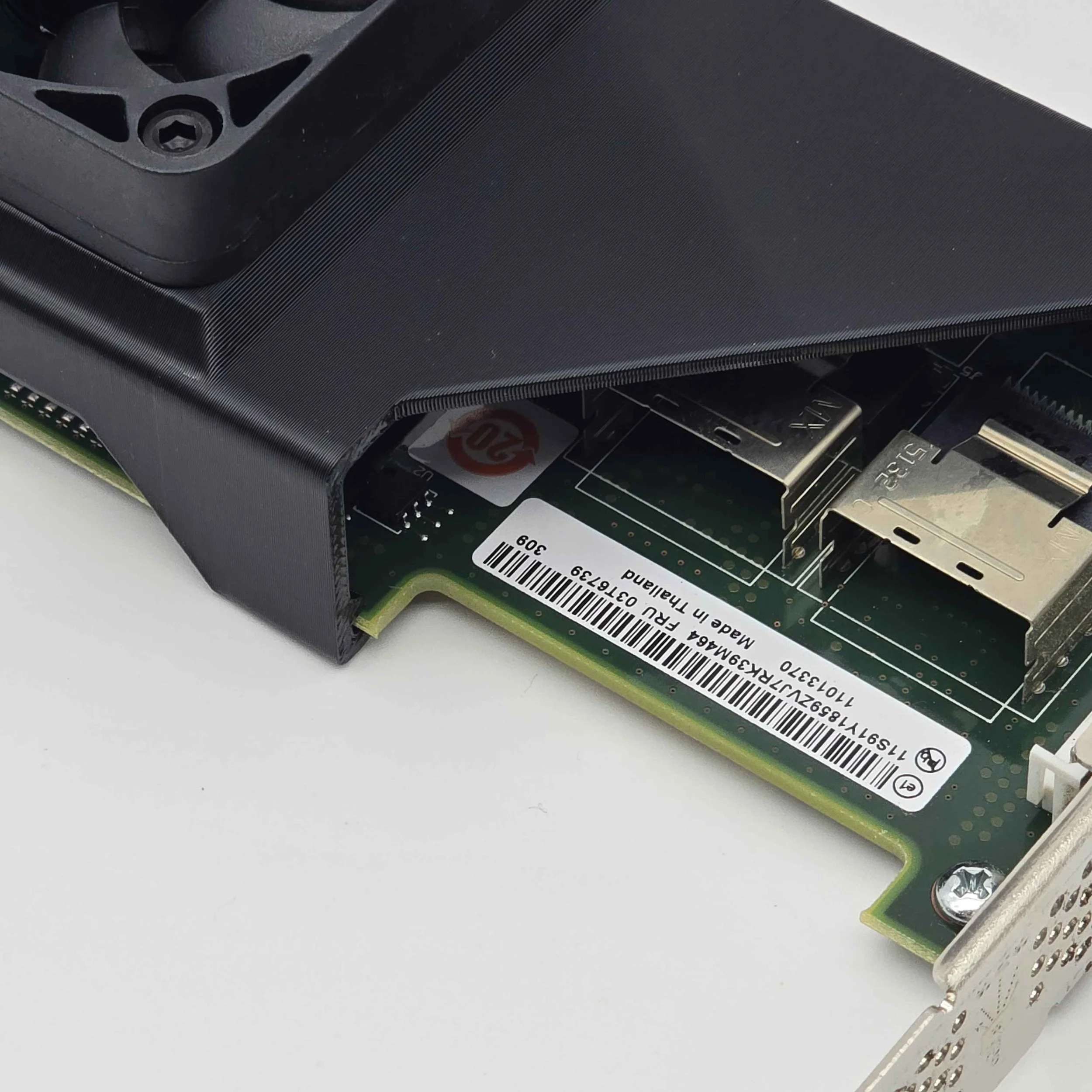

Shroud fits snugly onto the cards PCB, some force is required to attach (see instructions below & video).

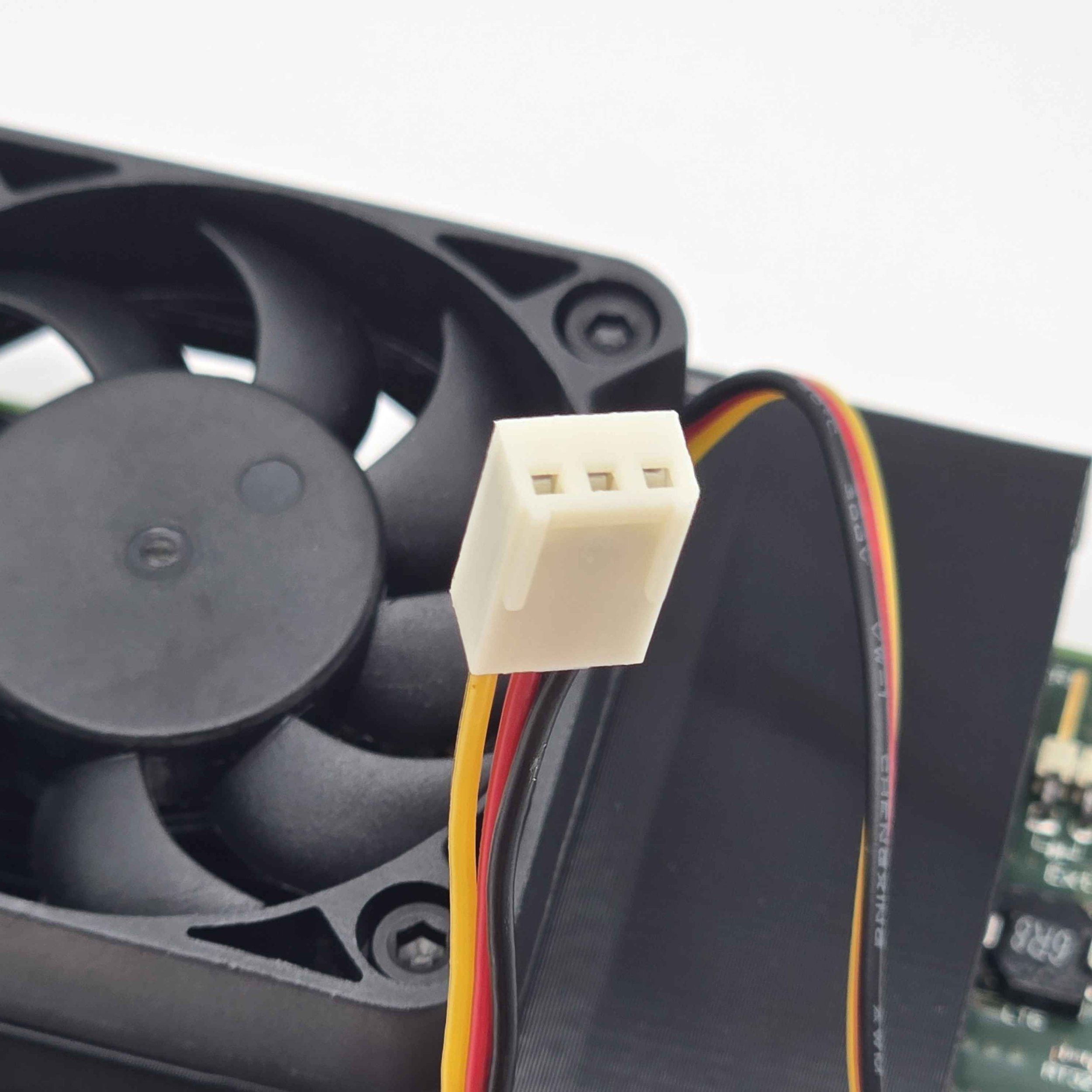

Standard desktop 3-pin fan header (in BIOS, use DC mode to control RPM speed not PWM).
Instructions:
Place shroud over heatsink.
Clip on the 2 clips on the side with the PCIe slot first.
Apply lateral pressure at the top of the shroud, pushing the shroud towards the other side.
The remaining 2 clips will make an audible click when they engage over the PCB.
About:
Designed and manufactured in the USA.
Free shipping (USPS 3-5 business days)
2 day processing time
60 day returns
